DesignSphere

Products › DesignSphere

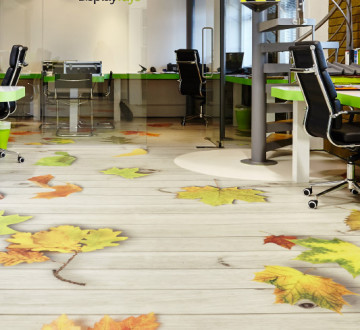

A completely unique and bespoke way to create a floor graphic or image

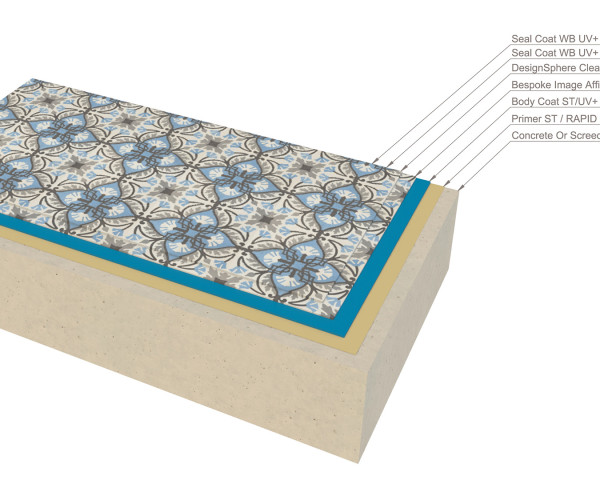

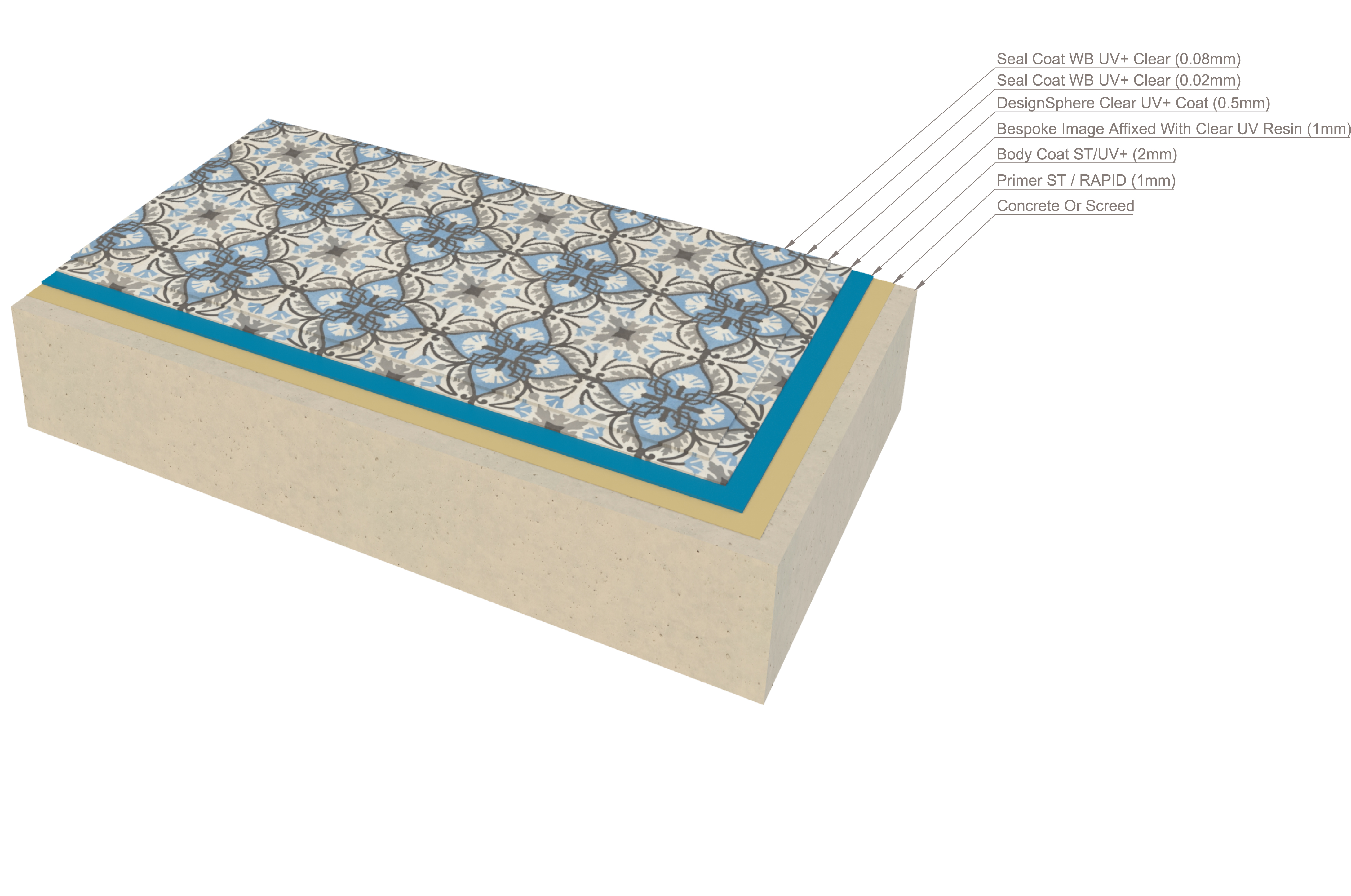

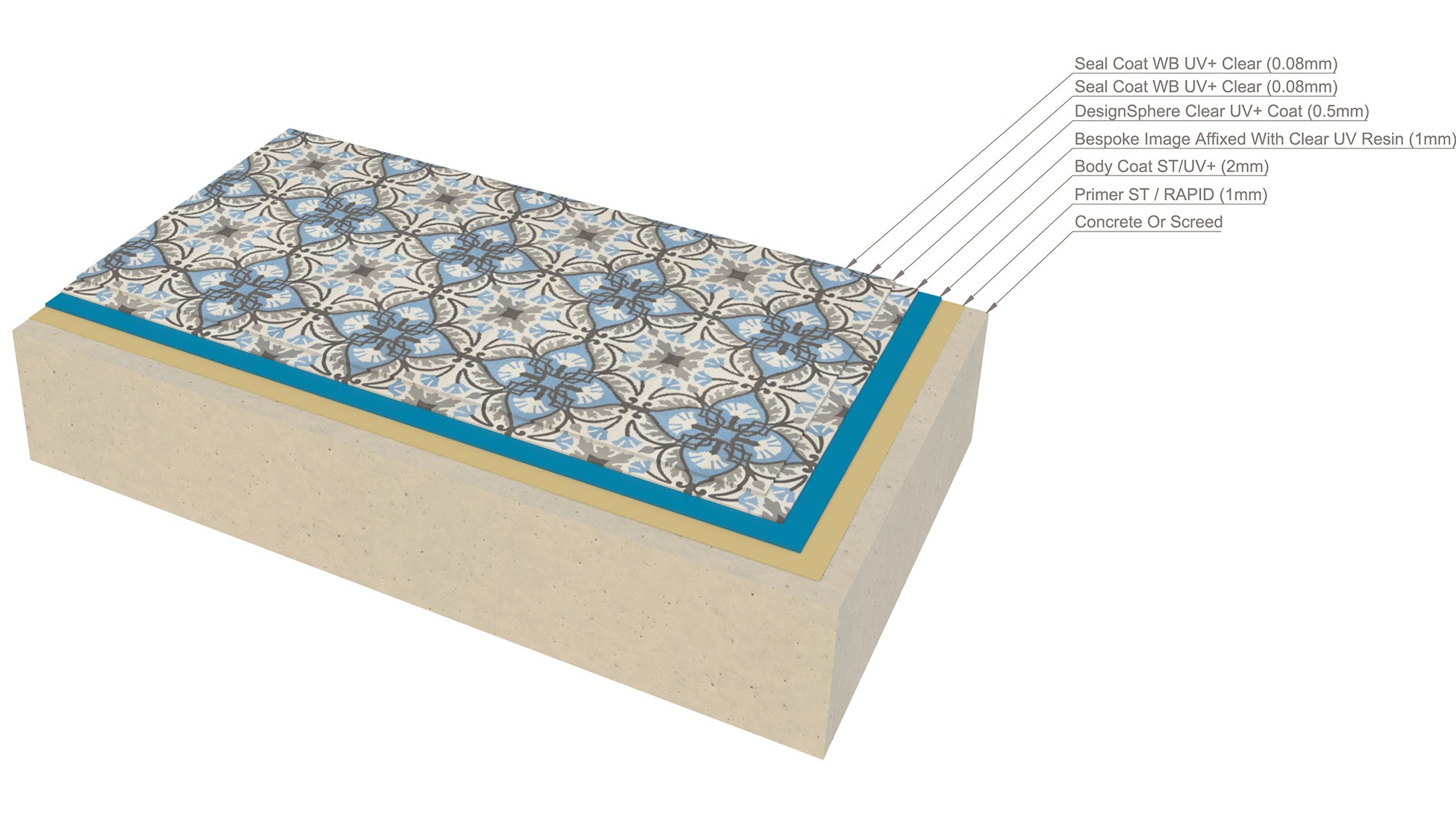

DesignSphere uses a unique and innovative system to incorporate any chosen image of yours into a Sphere8 floor build-up that is creative yet practical. See a DesignSphere case study to learn more...

Explore technical data

Thickness	7mm
Layers	7
Elasticity	60%
Shore Hardness	D70
Abrasion Resistance	Good
Slip Rating	R9-R11	EN 51130
Fire Classification	B_fls1	EN 13501-1
Thermal Resistance	tbc
Emission Free	YES	AgBB

Area Use Classification	23/33	EN685
Application Time	7 days
Impact Sound Reduction	1dB
Impact Sound Reduction with Shockpad	13dB
Resistance to Chair Castors	Good	EN 425
Colour Range	Unlimited
FeRFA Type	Type 5	BS 8204
Guarantee	5 years

Download Technical Data Sheet

The opportunity to create something unique

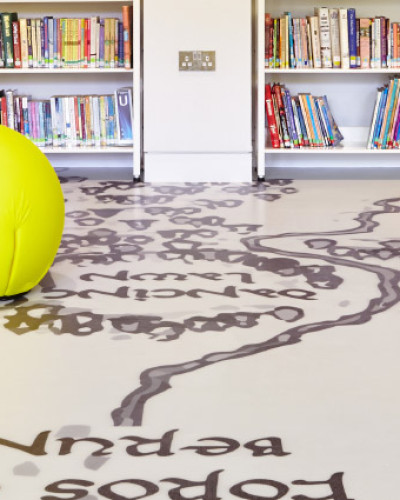

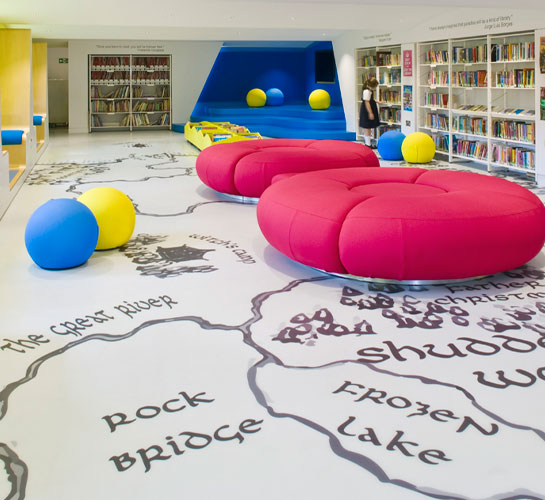

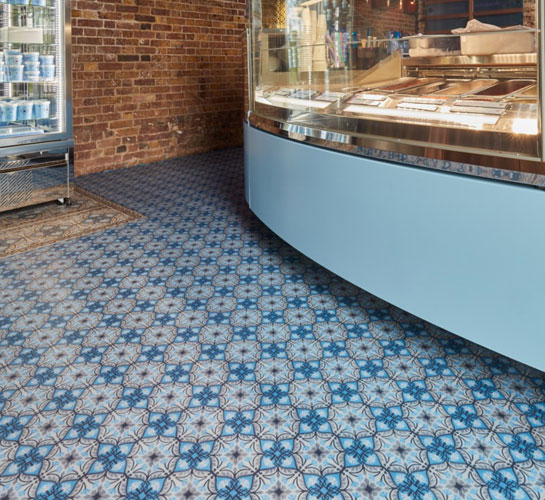

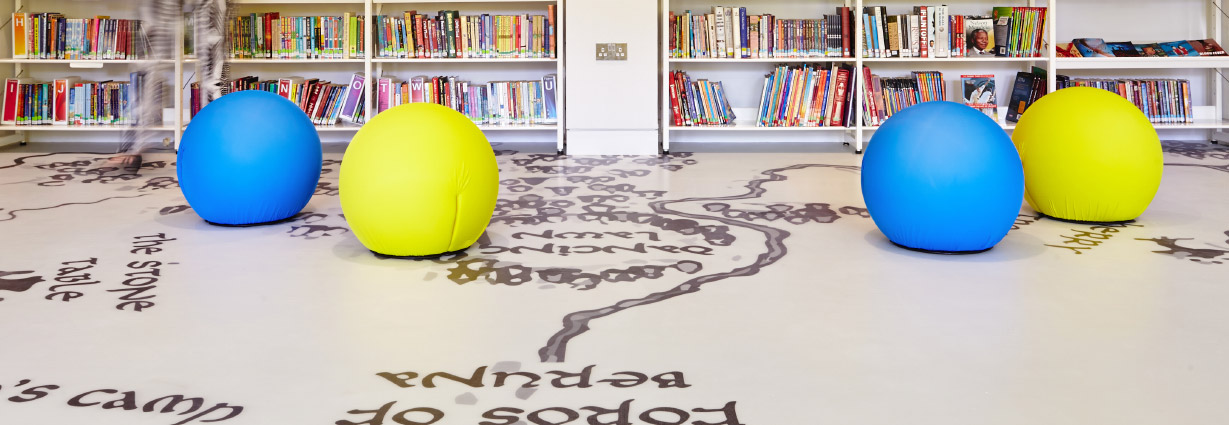

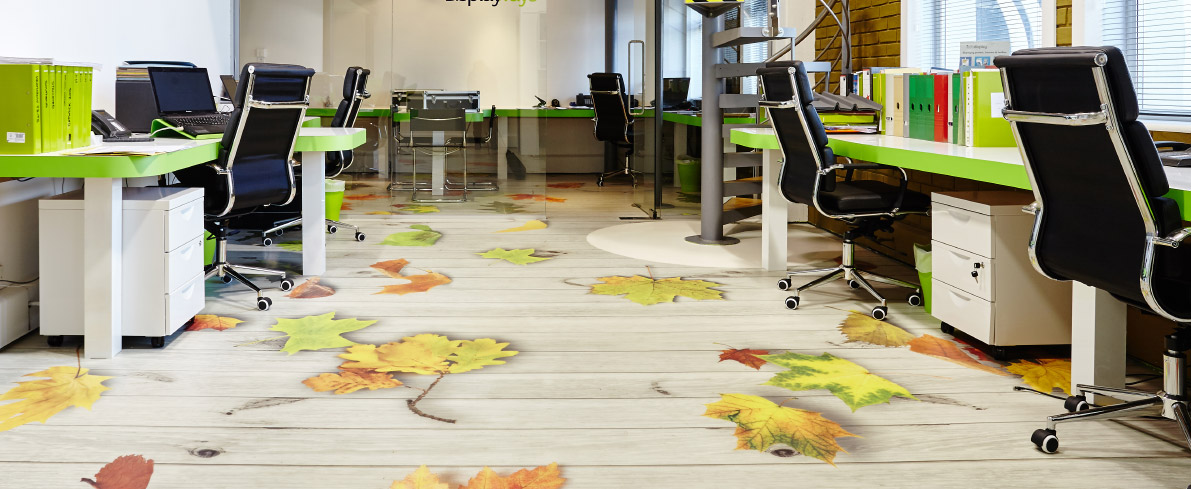

Our seamless surfaces can now be the canvas for any design. DesignSphere has been used by both residential and commercial clients to create beautiful bespoke floors

No need to sacrifice practical properties

UV-stable colours
Durable enough for commercial spaces
Designs do not fade or tarnish
