Innovative Ice Cream Parlour

Cases › Innovative Ice Cream Parlour

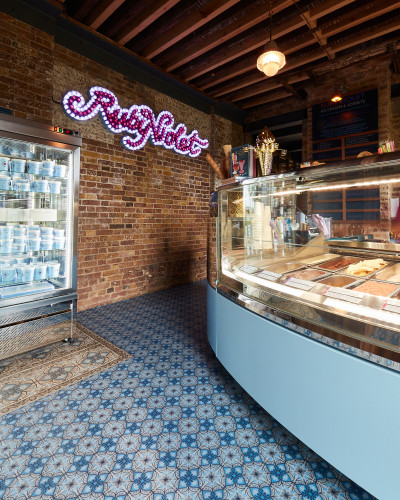

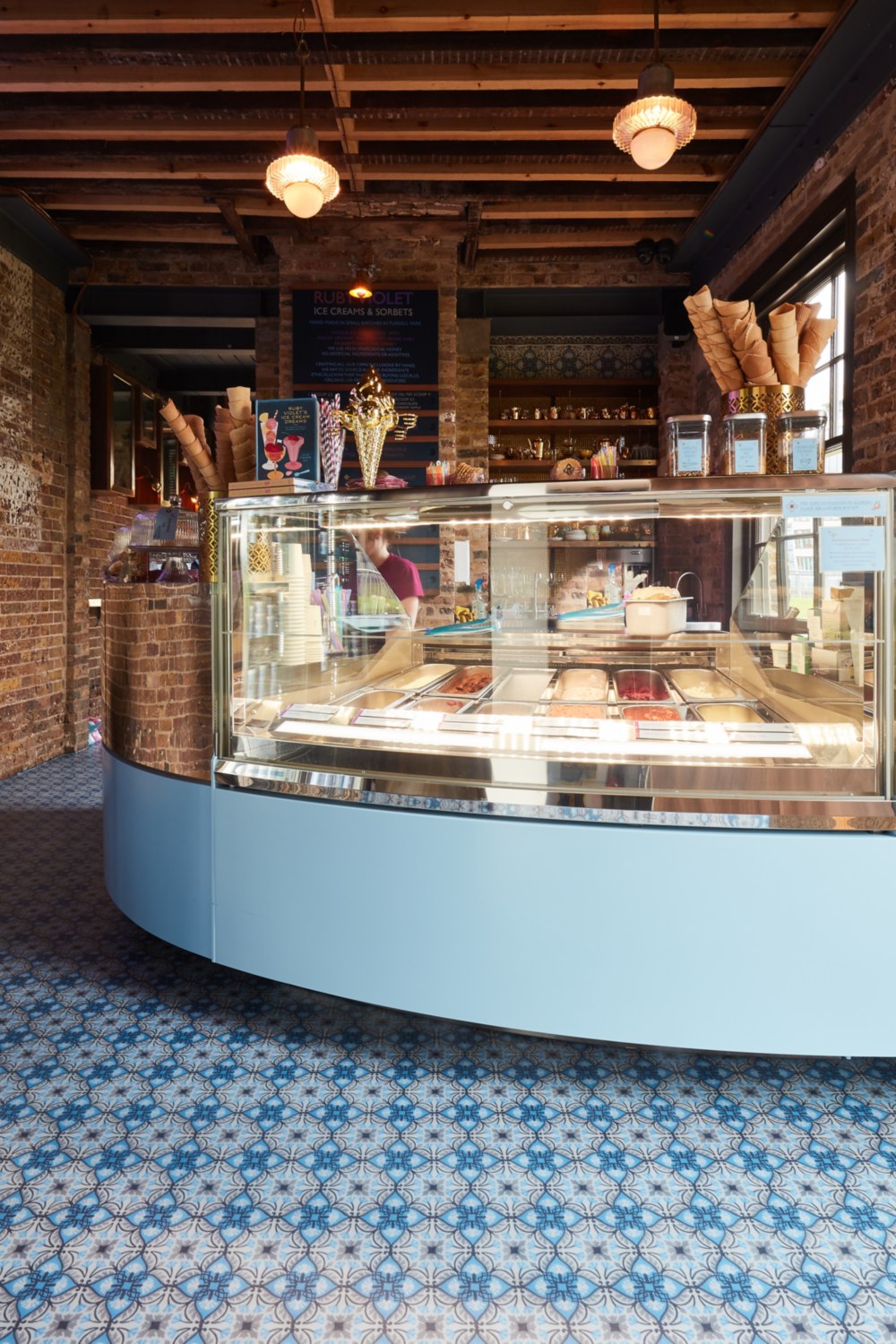

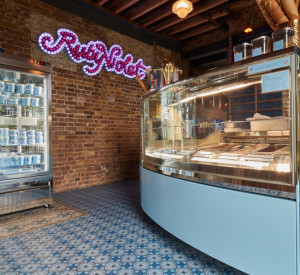

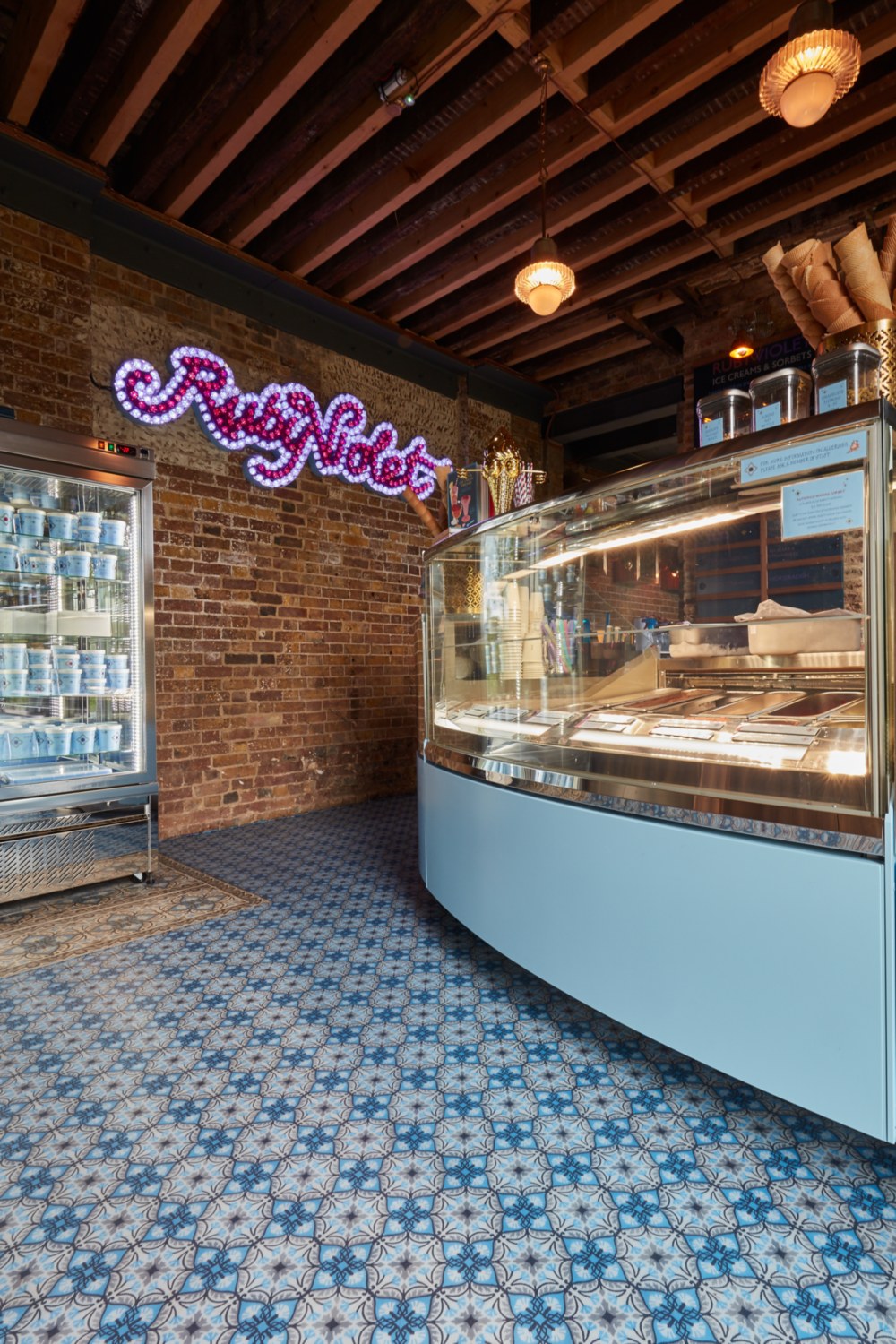

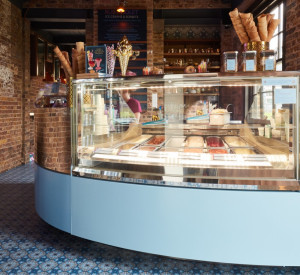

Resin floors at ice cream parlour

This unique DesignSphere floor was designed for an ice cream parlour...

"We LOVE our ice cream floor, so happy ... thank you for your patience and desire to get it right. Imagination and perseverance found the solution" Julie Fisher at Ruby Violet

Now nominated for Small Commercial Project of the Year!

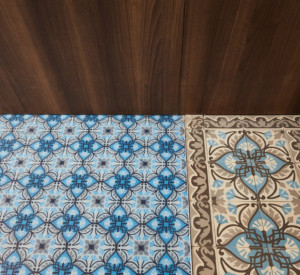

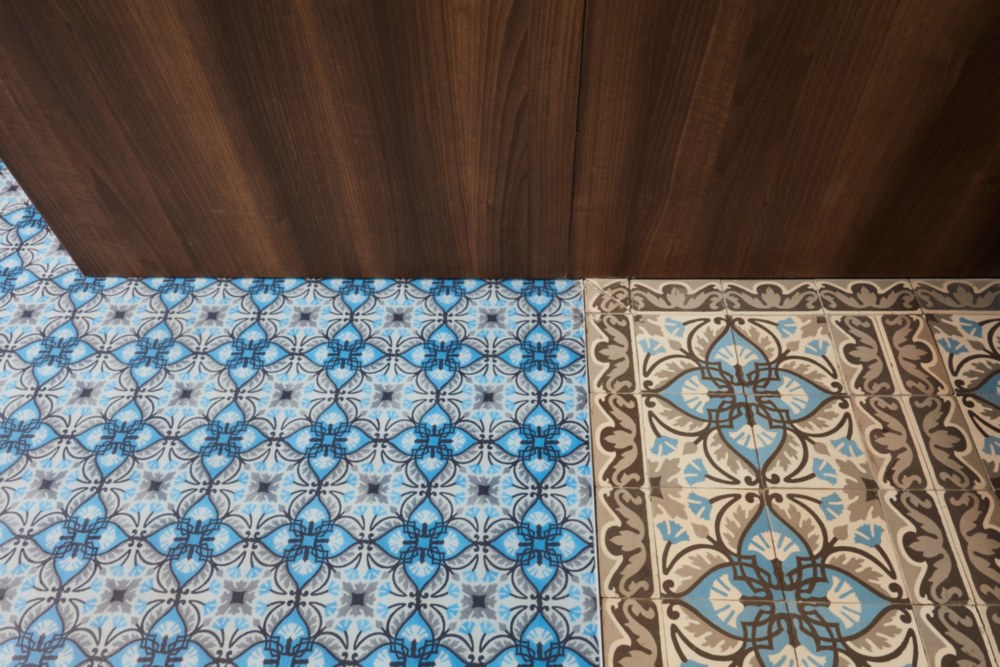

We were approached by Julie from Ruby Violet last year as she was looking to create a completely unique interior for her equally unique ice cream parlour. Her inspiration was the area of original tiles in this listed building that she wanted to reference in her seamless floor...

We worked tirelesslly with Julie to create the perfect design - scaling the tile design down until it suited the space, and laying a subfloor that allowed us to work in the listed building! In her own words it was a challenging site, but we loved the creative and practical challenge of realising our client's vision. In the end we combined the seamless properties of a Sphere8 floor with a bespoke image courtesy of our production partner Displayways. (To learn more about our DesignSphere floors head to the technical page..!) We then adapted the seal coat so it had all the grip and resistance of a ToughSphere floor - creating a truly unique product for a truly unique brief!

This project is now up for Small Commercial Project of the Year at the Annual FeRFA Awards! Watch this space...

Get a quote

DesignSphere technical data

Thickness 7mm
Layers 7
Elasticity 60%
Shore Hardness D70
Abrasion Resistance Good
Slip Rating R9-R11 EN 51130
Fire Classification Bfls1 EN 13501-1
Thermal Resistance tbc
Emission Free YES AgBB
Area Use Classification 23/33 EN685
Application Time 7 days
Impact Sound Reduction 1dB
Impact Sound Reduction with Shockpad 13dB
Resistance to Chair Castors Good EN 425
Colour Range Unlimited
FeRFA Type Type 5 BS 8204
Guarantee 5 years

Download Technical Data Sheet

Further information

If you require any further information on our floors please don't hesitate to contact us.
